1Panel Panel Deployment

This document provides a graphical tutorial for deploying MaasUnion using the 1Panel panel.

Prerequisites

Item	Requirement
1Panel Panel	Latest stable version
Recommended OS	Linux (Ubuntu/CentOS/Debian, etc.)
Server Configuration	At least 1 core and 2GB RAM

Step 1: Install 1Panel Panel

Install 1Panel Panel

For information on 1Panel installation, deployment, and basic features, please refer to the 1Panel Official Documentation

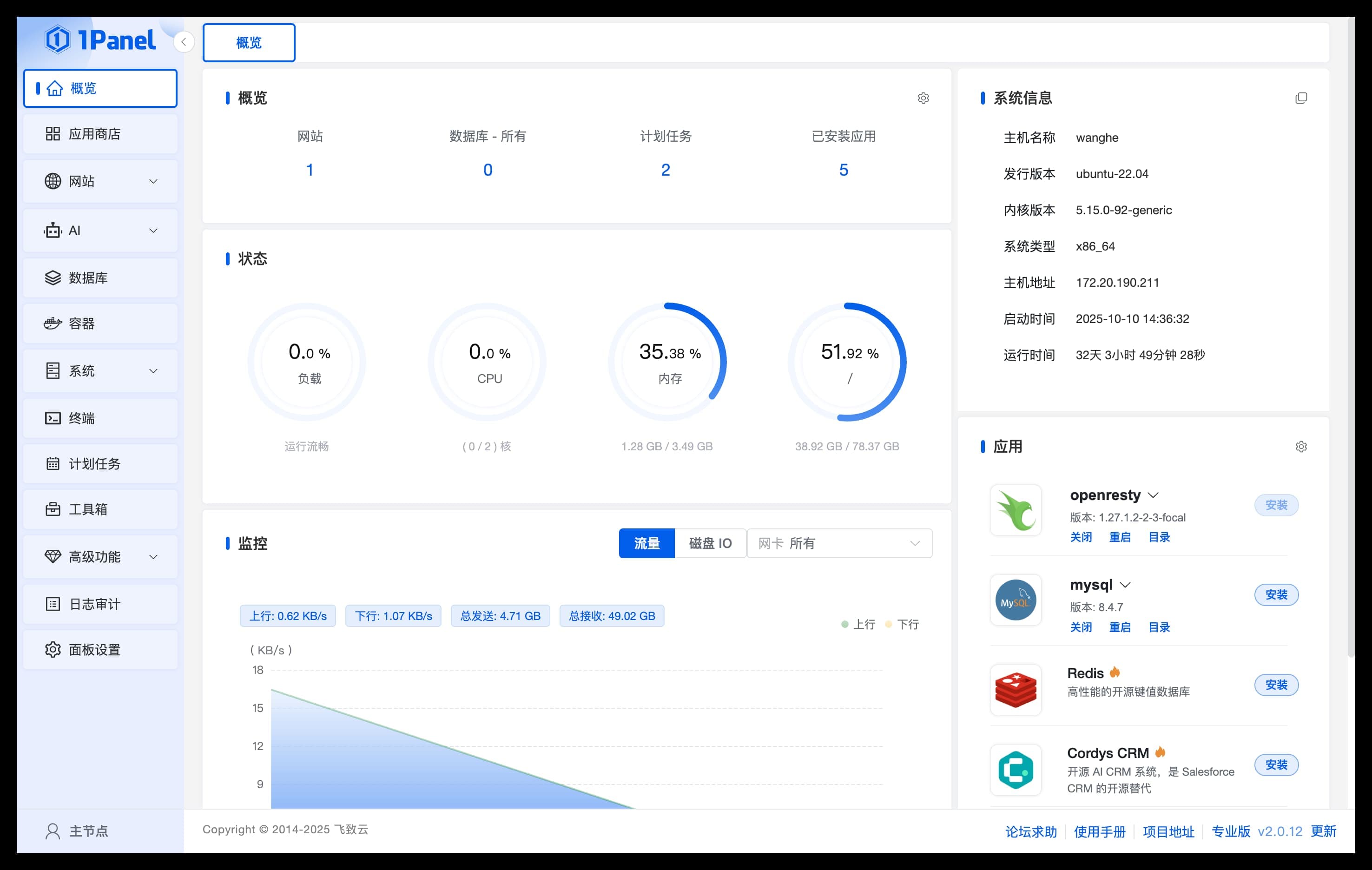

After completing the 1Panel installation and deployment, open your browser to the prompted URL to access the 1Panel panel.

1panel

Step 2: Install MaasUnion

Search for Applications

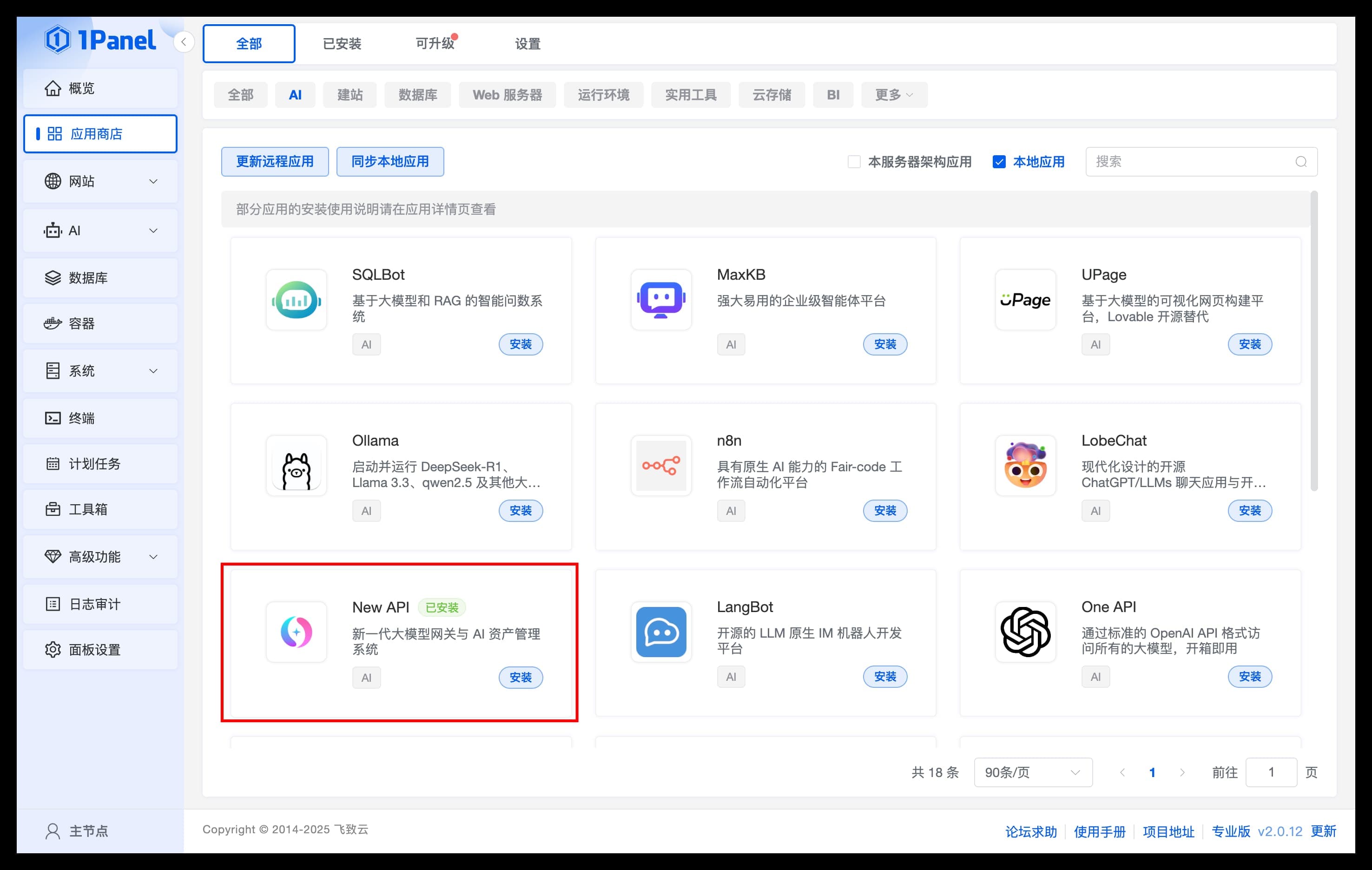

Go to the application list in the App Store, find the MaasUnion application under the [AI] category, and install it.

1panel-MaasUnion

Configure Parameters

Install Application

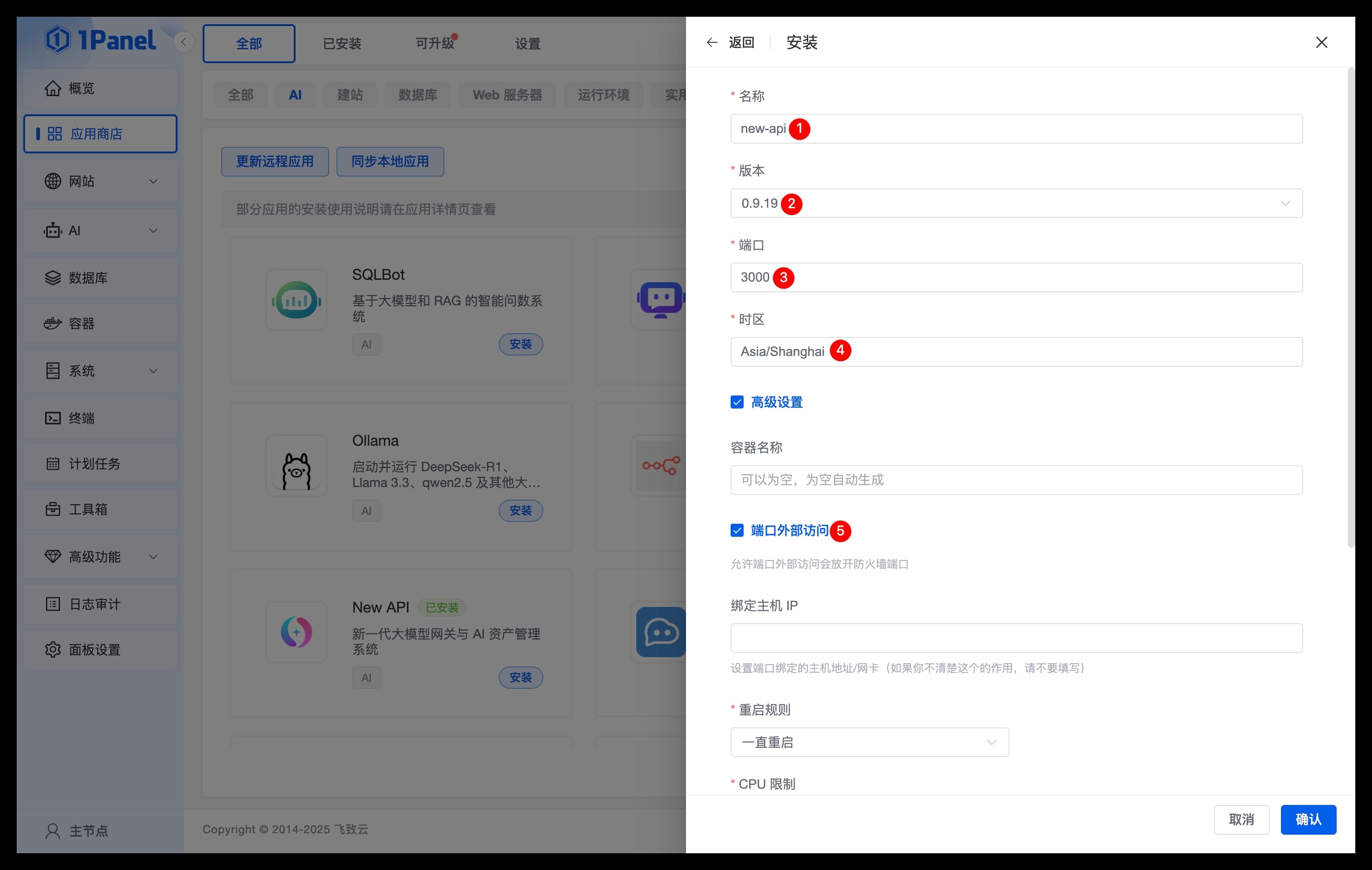

Configure MaasUnion application parameters on the installation page:

Name: The name of the MaasUnion application to be created
Version: Select the version of MaasUnion
Port: The service port for the MaasUnion application
Timezone: Enter the timezone where the server is located (default Asia/Shanghai)
Advanced Settings: Be sure to check external port access

MaasUnion-setting

Confirm Installation

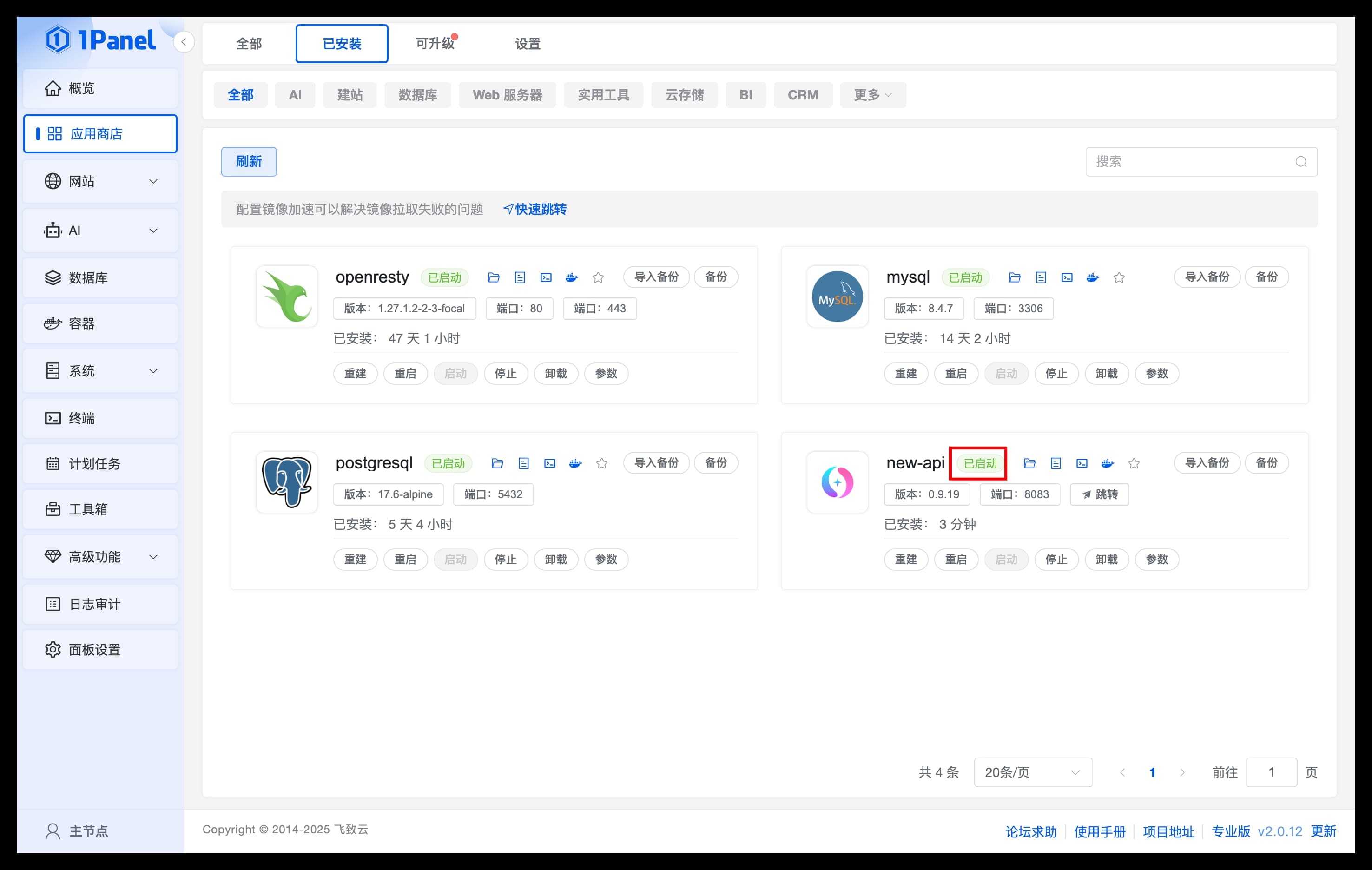

Click Confirm to start the installation. The page will automatically redirect to the installed applications list. Wait for the MaasUnion application status to change to Started.

MaasUnion-start

Step 3: Configure Environment Variables (Important)

After installation, it is recommended to configure the following key environment variables:

Required Environment Variables

Variable	Description	Required
`SESSION_SECRET`	Session secret, must be consistent for multi-node deployment	Required
`CRYPTO_SECRET`	Encryption secret, required when using Redis	Conditional

Configuration Method

In the 1Panel application list, click the Parameters button for the MaasUnion application
Add in the environment variables section:
- SESSION_SECRET=your_random_secret_key
- CRYPTO_SECRET=your_crypto_secret_key (optional)
Click Confirm to save the configuration
Restart the application for the configuration to take effect

Generate Random Secrets

# Generate SESSION_SECRET
openssl rand -hex 16

# Or use Linux command
head -c 16 /dev/urandom | xxd -p

Step 4: Access MaasUnion

Access Application

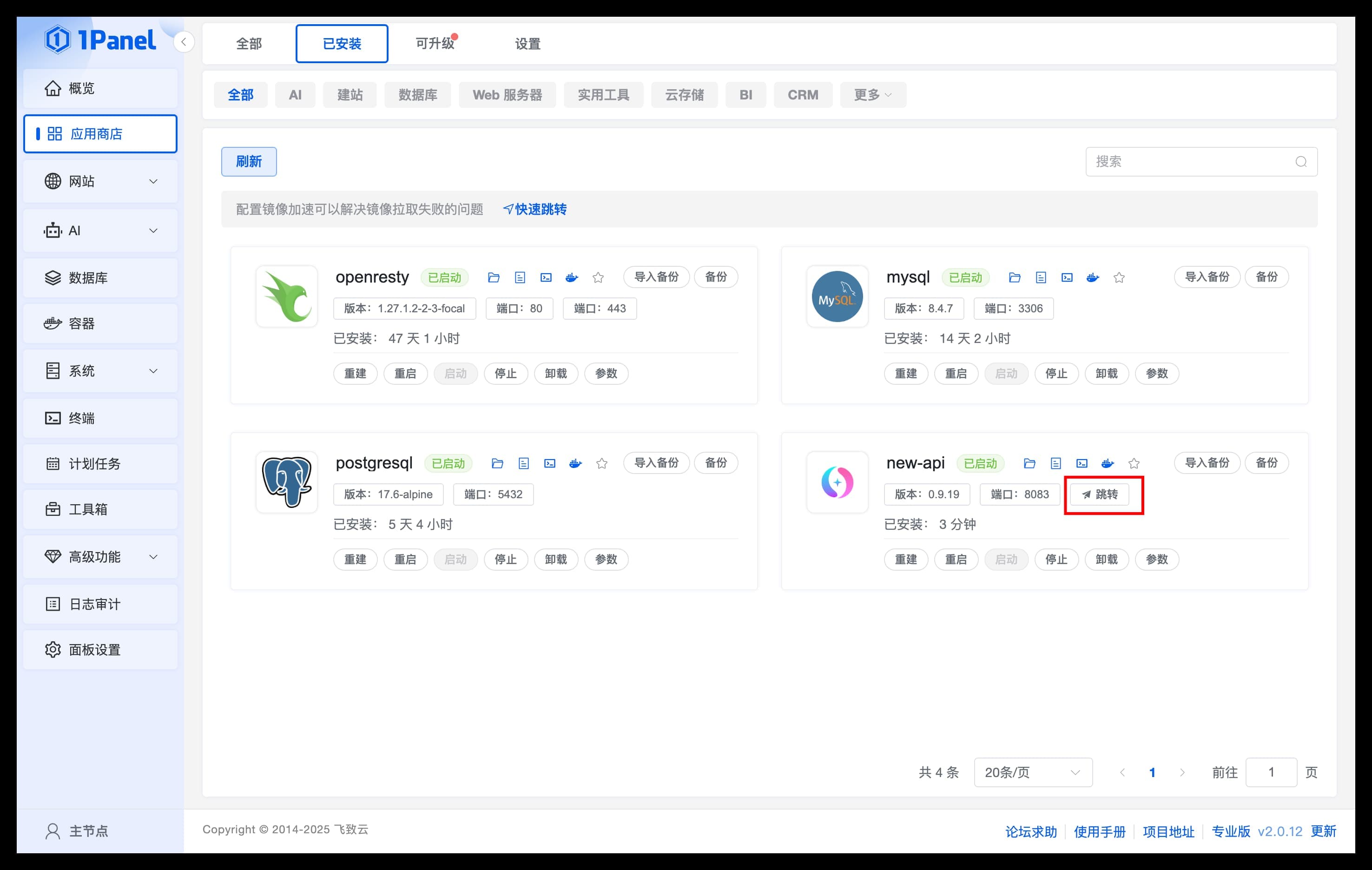

On the Installed page, click Jump to enter the MaasUnion WebUI page
Before use, it is recommended to set the Default Access Address on the Panel Settings page

MaasUnion-visit

The first visit will automatically guide you to the initialization page. Follow the on-screen instructions to set up an administrator account and password.

Common Issues

Cannot access application interface

Check if the application status is "Started"
Confirm that the port is correctly mapped and open
Check the server firewall and cloud server security group

Ensure the SESSION_SECRET environment variable is set and not empty.

How to update version

Log in to 1Panel panel, go to App Store → Upgradable page
Find the MaasUnion application, click the Upgrade button
Select the target version, click Confirm

How to persist data

1Panel applications store data in Docker volumes by default. To customize storage location:

In the application parameter settings, configure directory mapping
Ensure the /data directory is mapped to persistent storage
